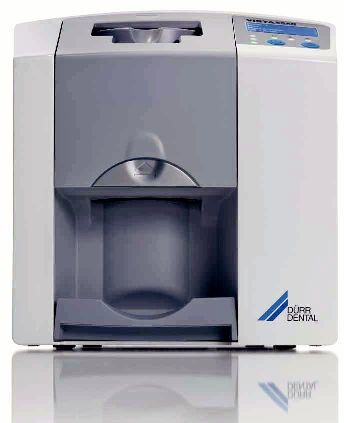

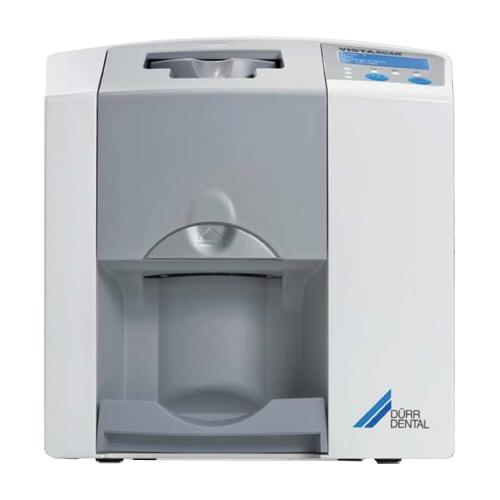

Durr Vista Scan Mini Plus
Durr Vista Scan Mini Plus
Durr Vista Scan Mini Plus

Durr Vista Scan Mini Plus

Product number: XXX
Play video

X-ray and scanning directly at the chairside with full flexibility in the image formats. The re-usable VistaScan image plates are read out in top quality within seconds.There’s never been a better time to change over to plates.

Read more
Request a costing Download PDF brochure

VistaScan Mini Plus – “red dot design award winner 2011“

X-ray and scanning directly at the chairside with full flexibility in the image formats. The re-usable VistaScan image plates are read out in top quality within seconds.There’s never been a better time to change over to plates.

The VistaScan Mini image plate scanner makes image plate diagnostics even faster for dentists. The compact device is particularly easy to use and requires a minimum of space – so that it can be installed in the treatment room.

  • No compromises on image quality- Thanks to PCS technology, VistaScan Mini can reliably resolve caries D1 lesions and endoinstruments down to ISO 06. With 22 LP/mm, 16-bit (65.536) grey scales.

  • No compromises on flexibility- All intraoral image plates – from size 0 to 4 – can be used with VistaScan Mini. In addition, 100% active surface area is available.

  • No compromises on simplicity- Particularly easy handling: Read out, delete and make ready for the next use in one step. Rapid image availability from 6 seconds on in the direct vicinity of the patient.

  • No compromises on configuration- The display shows the most important patient data and information on the scanning process at a glance. Including energy-saving stand-by function

  • No compromises on integration- VistaScan Mini can be operated with DBSWIN or other software packages via plug-ins or Twain drivers. It can be easily integrated into the surgery infrastructure via the USB or network interface.

Technical Data

  • Display: Yes

  • Plate Sizes: 0 to 4

  • Effective Resolution(LP/mm, dpi) : 22,1100

  • Theoretical resolution (LP/mm, dpi) : 40,2000

  • Weight (kg) : 6.5

  • Dimensions (H x W x D mm): 226 x 234 x 243

  • Standby function: Yes

  • Interfaces: USB/Network
