Durr Vista Scan Mini View
Durr Vista Scan Mini View
Durr Vista Scan Mini View

Durr Vista Scan Mini View

Product number: XXX
Play video

The new VistaScan Mini View image plate scanner enables the intuitive, efficient, and time-saving digitisation of image plates. Amongst other things, its large touchscreen with its easy-to-use user interface contributes to this. Its compact size and integrated wireless functions make the device really flexible.

Read more
Request a costing Download PDF brochure

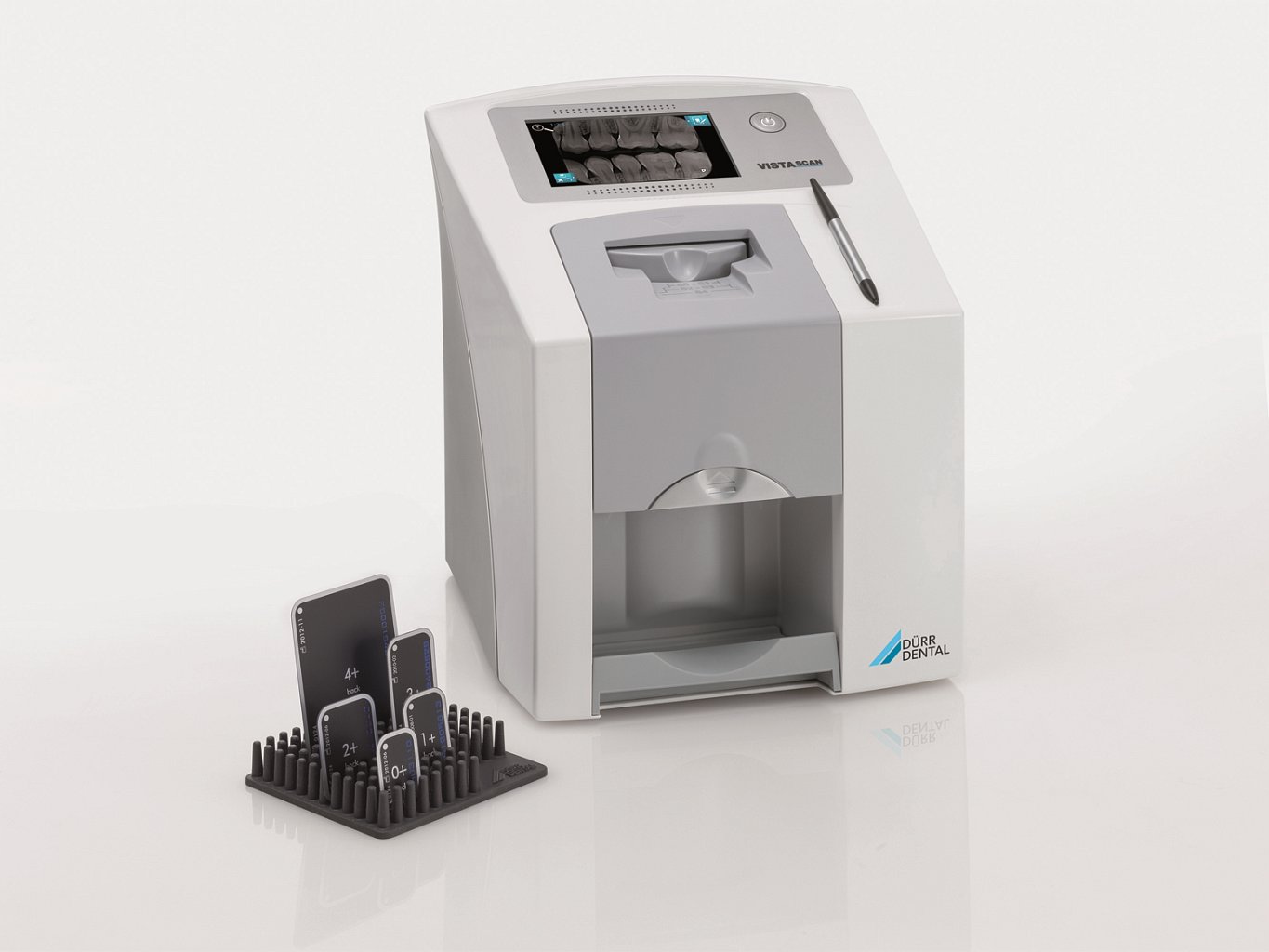

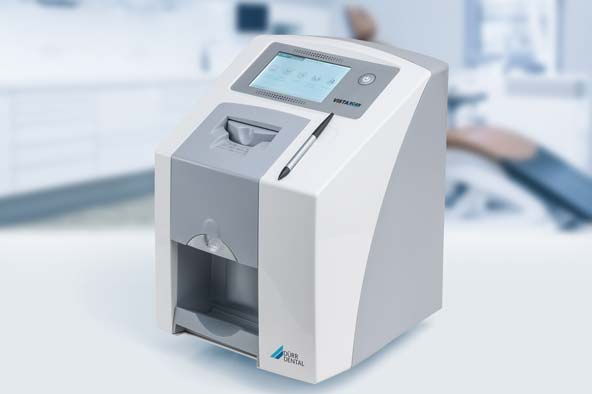

The image plate scanner with a touch screen for intraoral formats

The new VistaScan Mini View image plate scanner enables the intuitive, efficient, and time-saving digitisation of image plates. Amongst other things, its large touchscreen with its easy-to-use user interface contributes to this. Its compact size and integrated wireless functions make the device really flexible.

This makes image plate diagnostics for dentists quicker, more reliable and more convenient with the VistaScan Mini View.

  • All intraoral formats- You can use all intraoral image plate formats with the VistaScan Mini View - from size 0 to size 4. The process is as easy as for analogue film.

  • ScanManager - for even more efficient work You can send scan jobs to the scanner at any time from any workstation. Select the job, scan, done. The images are then automatically transmitted to the requesting PC. There‘s no need to wait around near the device.

  • Standalone mode- The VistaScan Mini View can also work independently, e.g. if the IT network goes down, you can still scan and save X-ray images. The images are temporarily placed in the internal memory and are later transferred to the database.

  • Compact and flexible- Thanks to its low space requirements, the VistaScan Mini View is ideal for placing next to treatment chairs: It‘s ideal for taking X-rays and scans right at the treatment station.

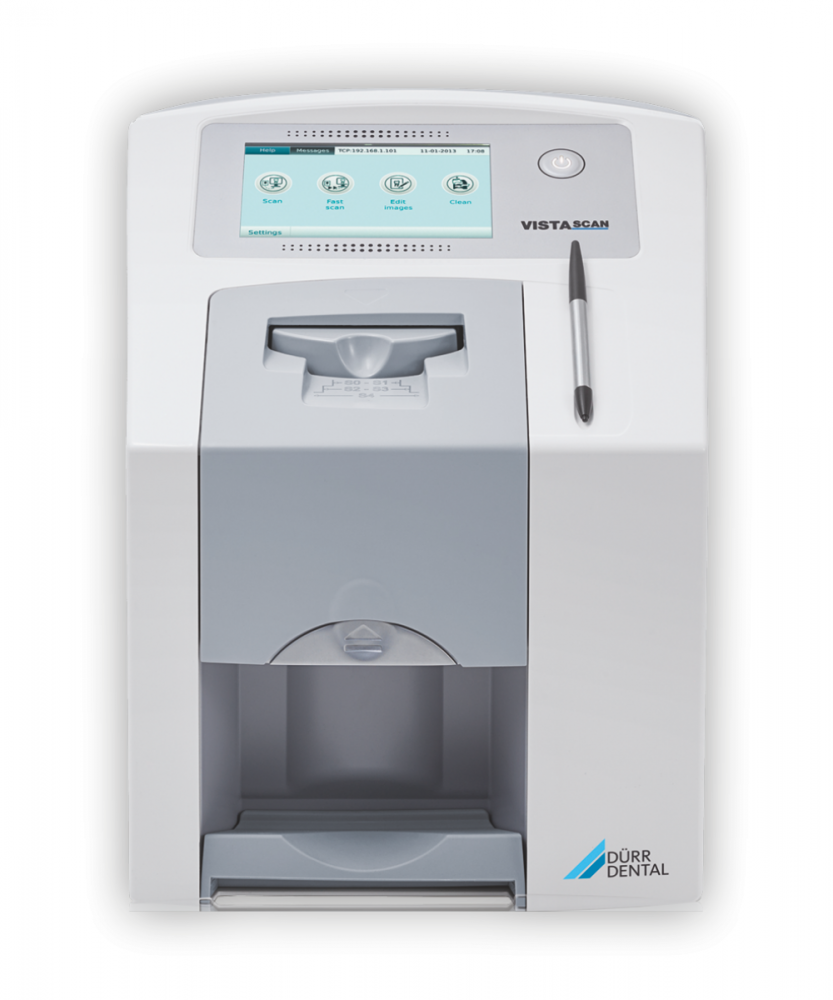

  • Convenient touchscreen- The 4,3“ high resolution touchscreen can display 16.7 million colours. It provides excellent image quality. The preview function for the scanned image allows X-ray results to be quickly checked

  • Intuitive controls optimum workflow- The convenient user interface enables the easy operation of the VistaScan Mini View - by hand or with the provided stylus. In addition to other functions, it provides lots of information to support workflows.

  • Excellent image quality- Thanks to PCS technology, the VistaScan Mini View can reliably depict D1 caries lesions and endo instruments up to ISO 06.

  • Wi-Fi functionality- The integrated wireless functionality allows the VistaScan Mini View to be easily integrated into an existing network and placed almost anywhere you want, e.g. right next to a treatment chair. Naturally, there is also a LAN interface.

Technical Data

  • Screen: 4.3” touchscreen, 800x480 pixels, 16.7 million colours

  • Plate sizes: 0 to 4

  • Effective resolution (LP/mm, dpi): 22, 1100

  • Theoretical resolution (LP/mm, dpi): 40, 2000

  • Weight (kg) Approx: 7 kg

  • Dimensions: (H x W x D in mm) 275 x 226 x 243

  • Standby function: Yes

  • Interfaces: LAN, wireless
