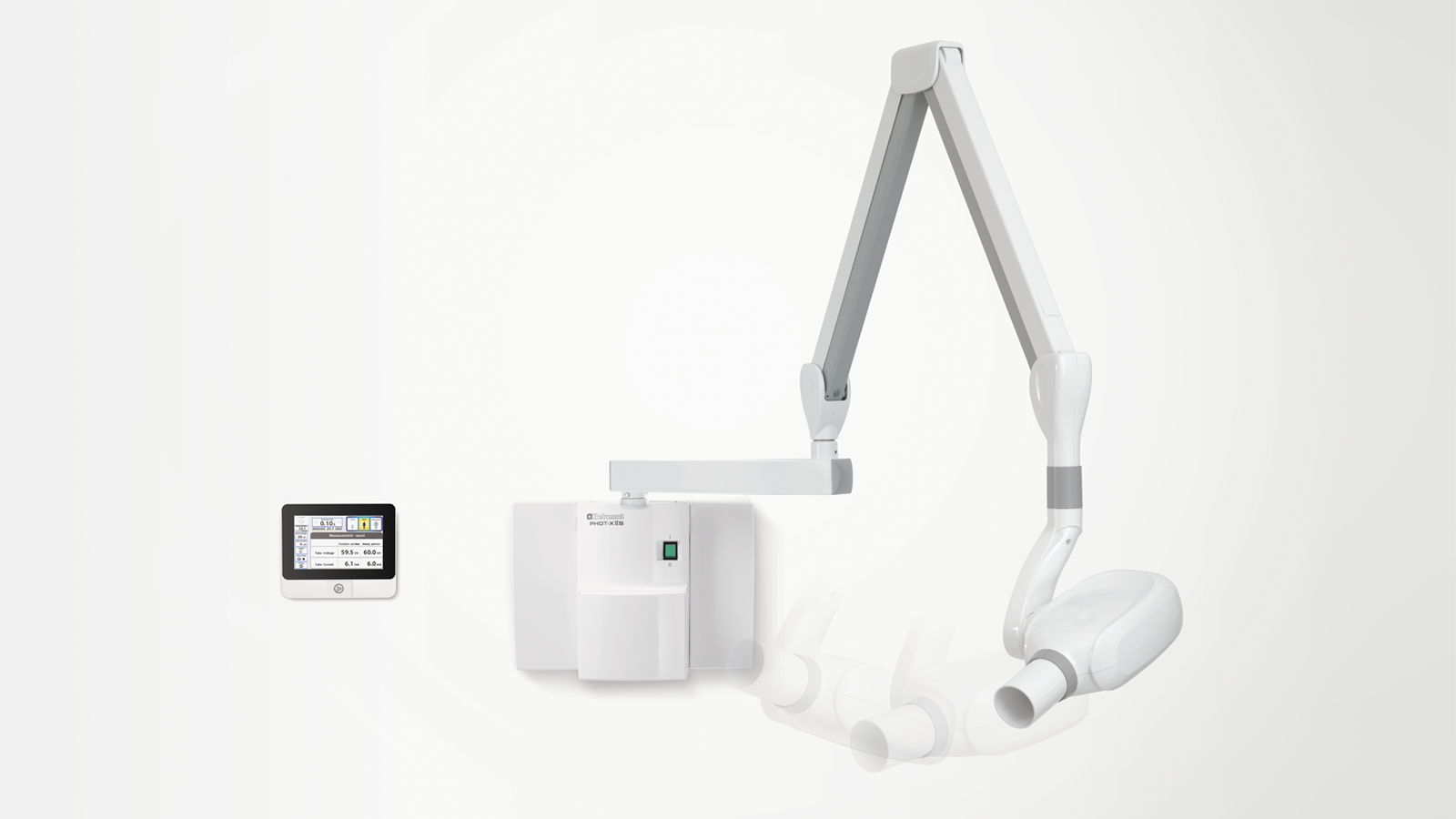

The new Belmont Touch was launched at Dentistry show 2019, the first Intra Oral DC X-Ray with touchscreen.

Read more
Request a costing

The new Belmont Touch was launched at Dentistry show 2019, the first Intra Oral DC X-Ray with touchscreen.

The Belmont Touch has a range of features which set in apart from similar Intra Oral X-Ray’s. The touchscreen is intuitive and aesthetically pleasing, with the option to set a screen saver or even use the practice branding as a screen saver, which creates a particularly nice feature.

In terms of functionality this x-ray is excellent quality, the unit is sturdy, durable and an engineers favourite due to the Instant Error Code Reporting System.

The Instant Error Code Reporting System shows the user the error and instructs the user either to call an accredited engineer or follow step by step, on screen instructions to rectify the fault. As a result, engineers are only called to attend when the fault is more complex and therefore downtime is kept to an absolute minimum.

If you would like to find out more please contact our friendly team on 01484 401015.

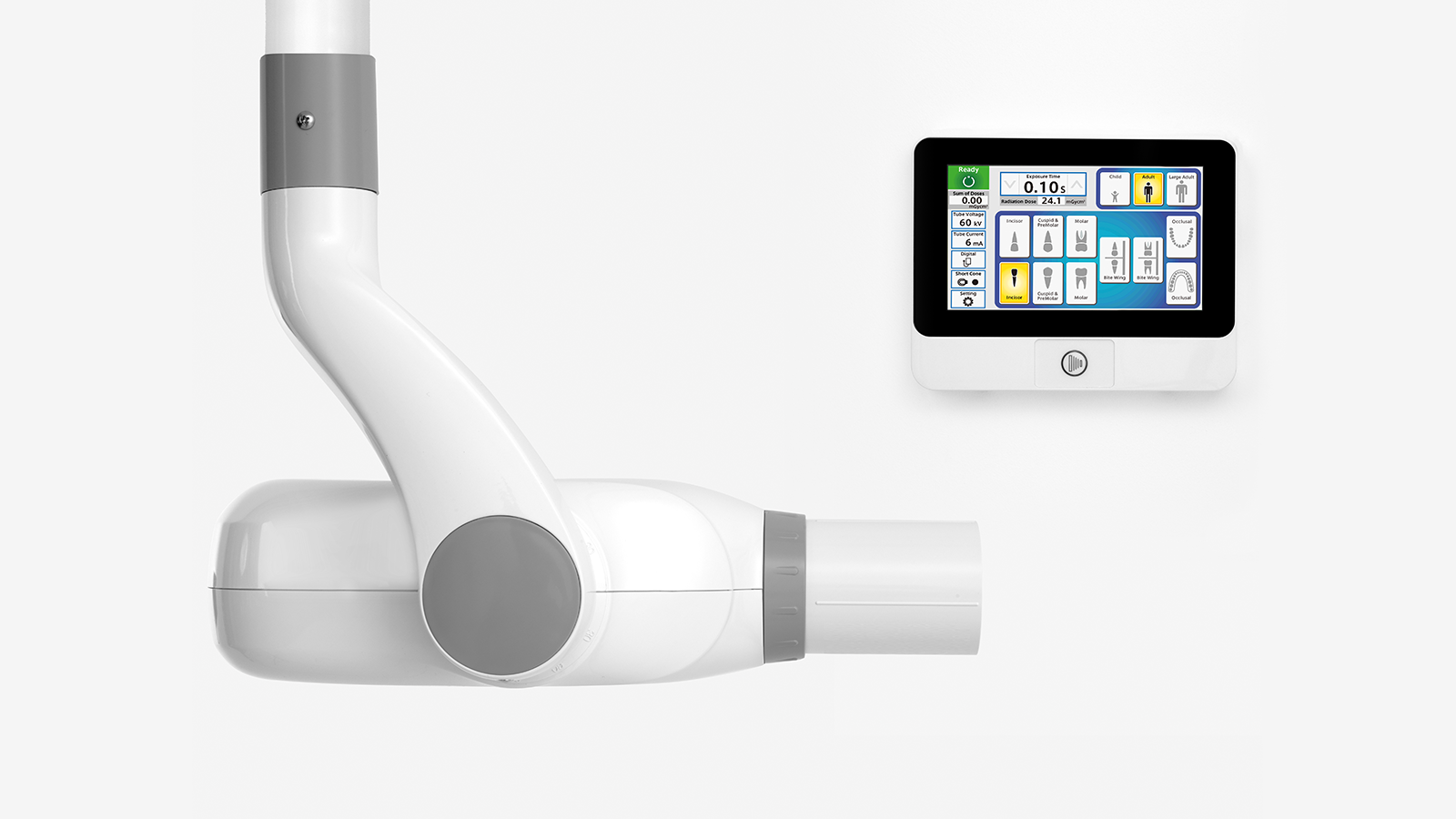

Touchscreen control key features

  • Easy-clean glass screen

  • Handheld exposure switch

  • USB port

  • Wall-mounted

  • Sleep Mode

  • Instant Error Code reports

  • Multilingual operation system

Phot-X IIS key features

  • DC X-Ray

  • Safety-conscious technologies

  • Zero-drift balance-arm

  • Simple operation

  • Digital and film compatible

  • Adult/adolescent/child presets

  • Cone length options

  • Handheld exposure switch

  • Easy-clean, smooth surfaces

  • Rectangular Collimator

  • Lockable keypad

  • Manual override

  • Mounting options

  • Retrospective-fitting option

Phot-X IIS key technical features

  • Tube voltage 60kV or 70kV

  • Tube current 3mA or 6mA

  • Focal spot 0.4mm

  • Exposure time 0.01 to 3.2 seconds

Cone length options

  • SSD (Source to Skin Distance):

  • Regular Cone: 203mm

  • Long Cone: 305mm

  • Rectangular Cone: 203mm

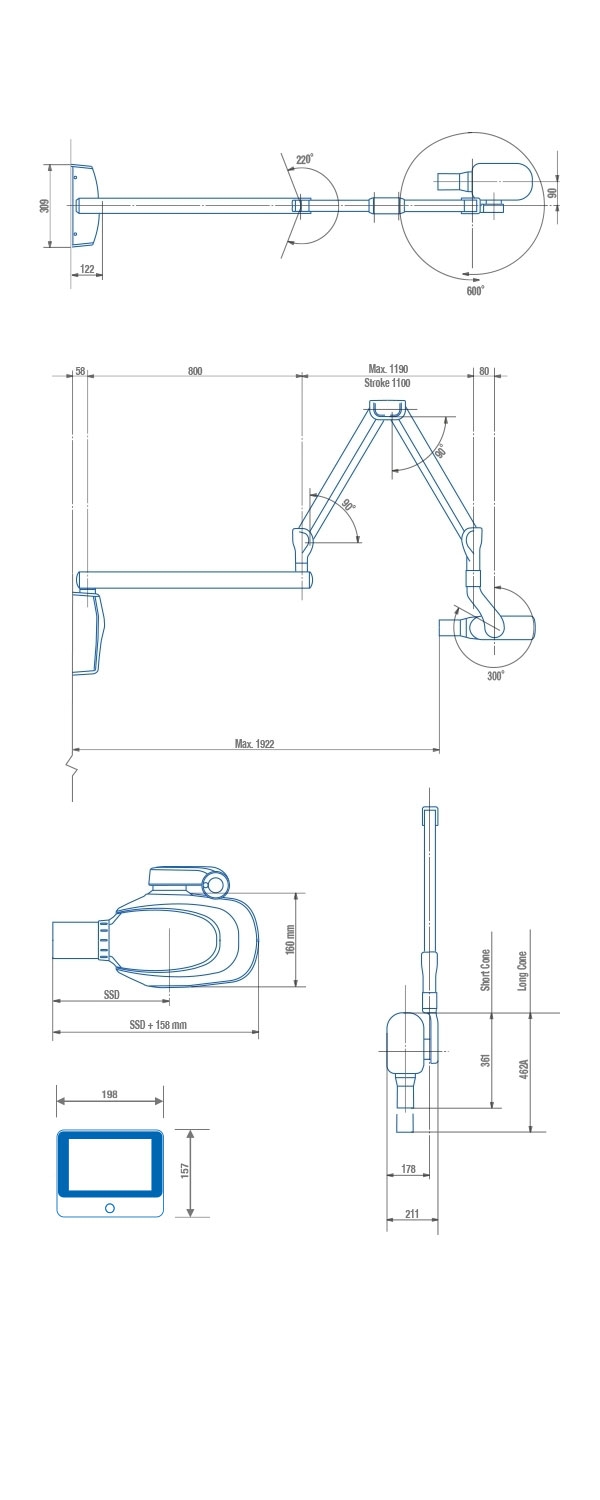

Primary arm length options

  • 30cm (300mm) / Maximum reach = 1,422mm

  • 80cm (800mm) / Maximum reach = 1,922mm

  • 100cm (1,000mm) / Maximum reach = 2,122mm
