Ultafast, Efficent, Consistant Cleaning

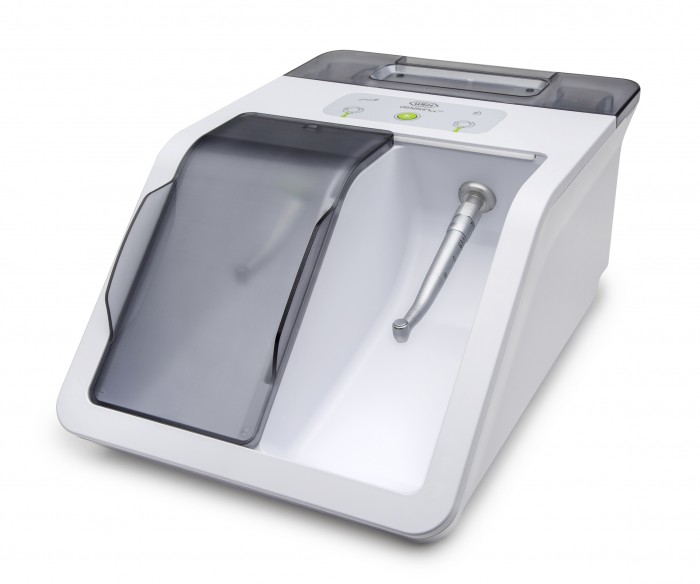

The Assistina Twin nebulizes the oil to produce an easily dispersible mist, which is discharged through the instrument at high pressure, thereby effectively removing contaminaton from inside the instrument.

The oil, in a fine mist, consistently coats even the most inaccessible parts of the handpiece gearing without any need for them to be set in motion. All aerosols are eliminated from the process chambers via active suction and integrated HEPA filter.

The Assistina Twin technology is even more efficient, oiling all gearing components and cleaning spray channels in only 10 seconds per handpiece, making rotational lubrication a thing of the past.

• Easy operation

• Handpiece maintenance in just 10 seconds

• Non-stop loading through two process chambers that can be used alternately

• Assistina TWIN Care Set reprocesses up to 2,800 handpieces

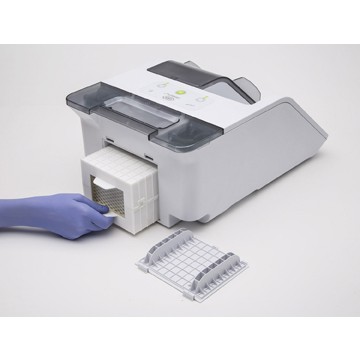

• Active suction of aerosols with integrated HEPA filter

• Wide range of adaptors

Assistina TWIN

• Supply voltage: 100 – 240 V AC

• Permitted voltage fluctuation: ±10 %

• Nominal current: 0.2 – 0.4 A

• Frequency: 50 – 60 Hz

• Maximum power consumption: 18 VA

• Air consumption: approx. 40 Nl/min.

• Operating pressure: 5 – 10 bar (controlled via an integrated, automatic pressure controller)

• Volume: 60 dB

• Dimensions (width x depth x height): 297 x 435 x 190 mm

• Weight: 3,8 kg

• Capacity: 200 ml W&H Activefluid cleaning solution, MC-302 200 ml W&H Service Oil F1, MD-302
