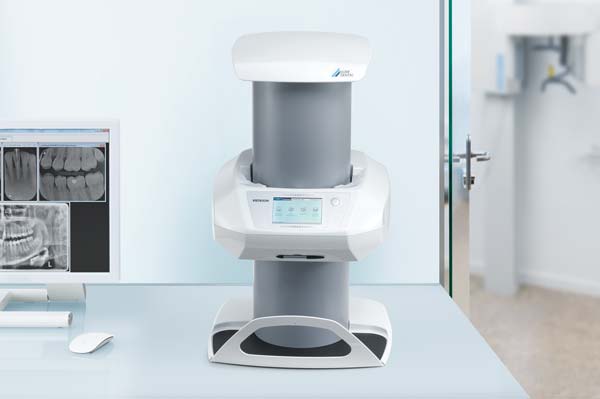

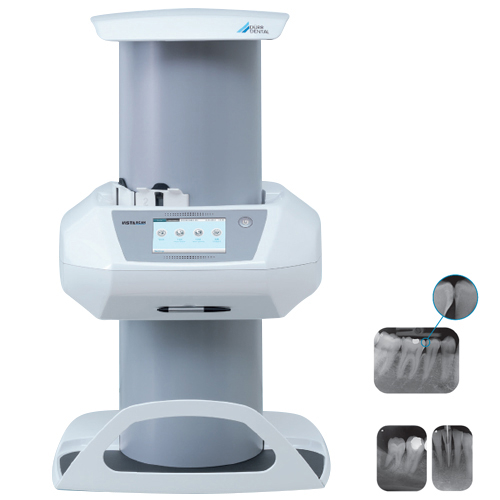

The image plate scanner with a touch screen for all formats The new VistaScan Combi View image plate scanner enables the intuitive, efficient and time-saving digitisation of image plates for both intraoral and extraoral formats.

Amongst other things, its large touch screen and easy-to-use user interface contribute to this. Thanks to the integrated wireless LAN functionality, the device is exceptionally flexible.

This makes image plate diagnostics for dentists quicker, more reliable and more convenient with the VistaScan Combi View.

• The universal scanner for intraoral and extraoral formats - The VistaScan Combi View enables the scanning of all intraoral and extraoral image plate formats.

• ScanManager- You can send scan jobs to the scanner from any work station. You then select and start the required job on the scanner by touching the screen.

• Stand-alone mode- The VistaScan Combi View can also work independently, you can still scan and save X-ray images even if the IT network is down.

• Convenient touch screen- The 4,3“ high resolution touchscreen can display 16.7 million colours and provides excellent image quality.

• Intuitive controls- The convenient user interface enables the easy operation of the VistaScan Combi View - by hand or with the provided stylus.

• Excellent image quality- Thanks to PCS technology, the VistaScan Combi View can reliably detect D1 caries lesions and endo instruments up to ISO 06.

• Wi-Fi functionality- The integrated wireless functionality allows the VistaScan Combi View to be easily integrated into an existing network and positioned in a space-saving fashion thanks to a wall-mounted installation option. Naturally, there is also a LAN interface.

Technical Data

• Screen: 4.3” touchscreen, 800 x 480 pixels, 16.7 million colours

• Plate sizes: 0 to 4

• Intraoral formats (cm): 2 x 3/ 2 x 4/ 3 x 4/ 2.7 x 5.4 / 5.7 x 7.5

• Panorama formats (cm): 12.7 x 30.5 / 15 x 30

• Ceph formats (cm): 18 x 24 / 20 x 24 With VistaScan Omni View: 24 x 30

• Effective resolution (lp/mm): 22 (1100 dpi)

• Theoretical resolution (lp/mm): 40 (2000 dpi)

• Greyscale (bits): 16 (65,536)

• Weight (kg)/mounting: 24/table-mounted; optionally, wall-mounted

• Dimensions (H x W x D in mm): 720 x 380 x 380

• Interfaces: LAN, Wireless
